Product introduction:
The constant temperature and humidity test box is also called the high and low temperature alternating humidity and heat test box. It is suitable for testing the quality of electronic, electrical, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
Compliance with standards: GB/T5170.5, GB/T10586, GB/T2423.1 Test A, GB/T2423.2 Test B, GB/T2423.3 Test Ca, GB/T2423.4.
Specifications:
| Model/Volume |
Studio size (W*H*D) mm |
Dimensions (W*H*D) mm |
| HS-TH-S-80 |
400×500×400 |
900×1450×1000 |
| HS-TH-S-100 |
400×500×500 |
900×1450×1000 |
| HS-TH-S-150 |
500×600×500 |
1000×1500×1100 |
| HS-TH-S-225 |
500×750×600 |
1100×1600×1100 |
| HS-TH-S-408 |
600×850×800 |
1200×1700×1300 |
| HS-TH-S-800 |
1000×1000×800 |
1500×1850×1400 |
| HS-TH-S-1000 |
1000×1000×1000 |
1500×1850×1500 |
| HS-TH-S-1300 |
1000×1300×1000 |
1500×2100×1500 |
temperature range:
G:-20℃～+150℃ Z:-40℃～+150℃ D:-70℃～+150℃
Humidity range:
5～98%R.H/10～98%R.H/20～98%R.H/30～98%R.H
technical parameter:
Control Stability: Temperature ±0.5℃ Humidity ±2.0%
Distribution uniformity: temperature ±2.0℃ humidity ±3.0%
Heating rate: 3°C/min (about 25 minutes from -40°C to 30°C) non-linear no-load
Cooling rate: 1°C/min (about 40 minutes from 30°C to -40°C) non-linear no-load
Control System:
Control system: It adopts the LCD touch-type TEMI880 temperature controller imported from South Korea, and forms an electrical control system with electrical components such as Schneider from France, Fuji from Japan, and Shihlin from Taiwan.
product structure

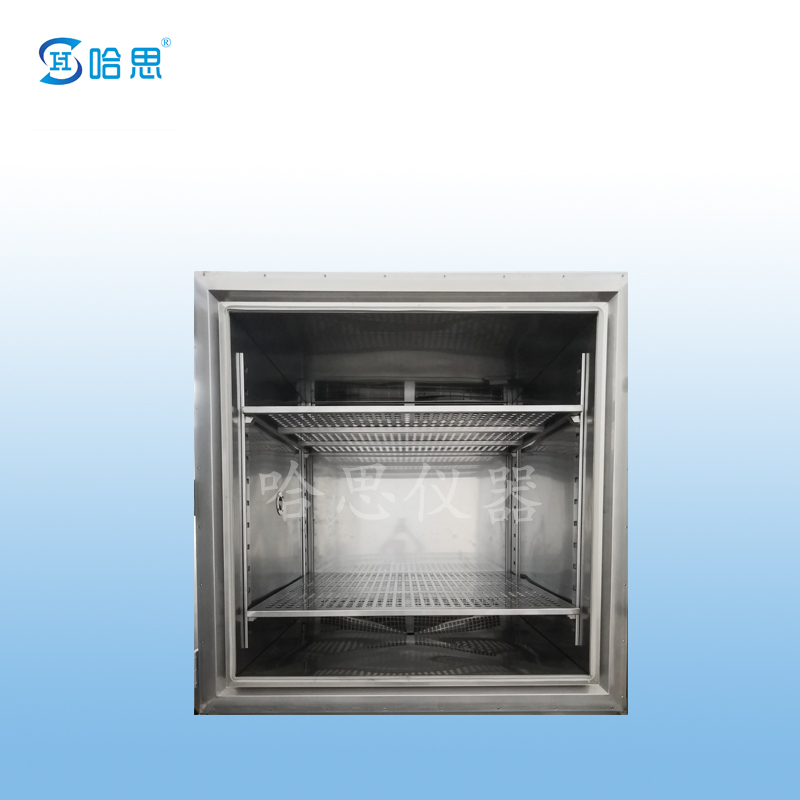

Inner box material: SUS #304 mirror stainless steel plate
Outer box material: SUS #304 stainless steel plate or cold-rolled steel plate with paint
Insulation material: rigid Polyurethane foam + glass wool
Cooling System:
Refrigeration system and compressor: In order to ensure the cooling rate and minimum temperature requirements of the test chamber, the test chamber adopts a binary cascade air-cooled refrigeration system composed of a set of imported compressors.
The compressor adopts the fully hermetic "Taikang" compressor imported from France or the semi-hermetic "Bitzer" compressor imported from Germany. |
